Infrared Dust Sensors

Infrared dust sensors are advanced devices designed to measure and monitor dust concentration in indoor air using optical scattering principles and infrared light sources. These sensors are widely used in air purifiers, fresh air systems, air conditioners with purification functions, PM2.5 detectors, and other smart environmental monitoring devices. By leveraging infrared technology, they provide precise, real-time information on particulate matter levels, helping maintain healthier indoor air and improving the overall living and working environment.

At the core of an infrared dust sensor is the principle of optical scattering. The device typically contains an infrared LED light source and a light-sensitive detector positioned opposite each other with an air passage in between. When airborne dust particles pass through this passage, they interact with the infrared light.

Some of the light is scattered by the particles, while some is absorbed, and a portion reaches the receiver. The detector measures the intensity of the reflected and scattered light. By analyzing these measurements, the sensor can accurately calculate dust concentration levels in the air. The stronger the pulse signal received by the detector, the higher the concentration of particulate matter in the environment.

Because infrared light operates outside the visible spectrum, it significantly reduces interference from ambient visible light, allowing for stable, reliable measurements. This makes infrared dust sensors highly suitable for indoor applications where lighting conditions may vary.

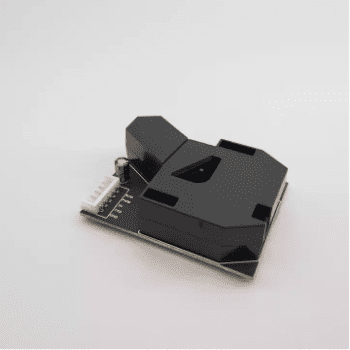

Infrared dust sensors are generally compact and simple in design, combining a light source, detector, and microcontroller in a small unit. Modern high-precision infrared dust sensors are designed to overcome common limitations such as low sampling rates and size detection constraints, offering superior performance with particles larger than 1 μm and maintaining stability under high dust concentrations.

Modern infrared dust sensors are designed to be compact, making them easy to integrate into various devices without occupying excessive space. Their low power consumption ensures they can operate efficiently in continuous monitoring scenarios, such as air purifiers or HVAC systems.

High-quality infrared dust sensors can detect changes in dust concentration quickly. This enables real-time monitoring and rapid adjustments in connected devices, improving responsiveness and maintaining optimal indoor air quality.

Unlike older sensors, advanced infrared dust sensors maintain accurate readings even in environments with high levels of particulate matter. This stability ensures reliable long-term performance in both residential and industrial settings.

Many infrared dust sensors feature built-in temperature compensation algorithms, ensuring consistent readings even under varying environmental conditions. This enhances reliability across different seasons, indoor temperatures, and humidity levels.

Electromagnetic shielding reduces interference from external sources, ensuring that readings remain accurate even in areas with strong electronic or magnetic fields.

Infrared dust sensors are versatile components used across a wide range of devices and industries. Their most common applications include:

Air purifiers rely heavily on real-time dust monitoring to optimize performance. Infrared dust sensors allow purifiers to:

• Detect and monitor particulate matter: Sensors measure fine dust, PM2.5, and larger particles in real time.
• Automatically adjust operating modes: Based on air quality, the purifier can increase or decrease fan speed, optimizing energy use and maintaining clean air efficiently.
• Trigger alerts and alarms: Sensors can notify users when dust levels reach unsafe thresholds, indicating filter replacement or increased purification is needed.
• Record and analyze air quality data: Advanced purifiers use sensor data to track air quality trends over time, helping users make informed decisions about their indoor environment.

In ventilation and fresh air systems, infrared dust sensors ensure that incoming air is clean and safe. By continuously monitoring dust levels, these sensors help maintain proper airflow and indoor air quality while protecting HVAC components from excessive particulate buildup.

Many modern air conditioners integrate infrared dust sensors to maintain indoor comfort and health. Sensors allow the system to automatically adjust purification settings, ensuring that cooled air is also clean and free of harmful particles.

Infrared dust sensors are essential in PM2.5 detectors and indoor air quality monitoring systems. By providing precise measurements of fine particulate matter, they enable users to monitor air pollution levels, make lifestyle adjustments, and take preventive health measures.

• Precision Monitoring: Detects small changes in dust concentration accurately.
• Durability: Can withstand continuous operation in dusty environments.
• Real-Time Data: Enables immediate feedback for smart air purification systems.
• Energy Efficiency: Optimizes power use in connected devices by adjusting operation based on detected dust levels.
• Compact Integration: Easily fits into various appliances, from portable air purifiers to built-in HVAC systems.

While infrared dust sensors are highly effective, some technical factors should be considered:

• Particle Size Detection: Traditional infrared sensors are more sensitive to particles larger than 1 μm, though high-precision models improve accuracy for smaller particles.
• Sampling Rate: Sensors using airflow-assisted measurement may have slightly lower sampling rates; however, advanced models with optimized airflow and fast signal processing mitigate this limitation.
• Interference Resistance: Infrared technology reduces the effect of visible light, while electromagnetic shielding minimizes electronic interference, ensuring stable readings.

High-precision infrared dust sensors offer several improvements over basic models, including:

• Faster response times for dynamic air environments
• Stable readings under high dust loads
• Low power consumption for continuous monitoring
• Compact form factor for easy integration

These advantages make them ideal for air purifiers, fresh air systems, air conditioners with purification features, and standalone PM2.5 monitors, ensuring accurate and reliable air quality monitoring for homes, offices, and industrial spaces.

Infrared dust sensors play a critical role in modern air quality management by providing accurate, real-time monitoring of particulate matter. Using infrared optical principles and the scattering effect, these sensors detect dust concentrations efficiently while minimizing interference from ambient light.

High-quality infrared dust sensors offer features such as fast response times, low power consumption, stable operation under high dust concentration, and electromagnetic shielding, making them suitable for integration into air purifiers, fresh air systems, HVAC units, and PM2.5 detectors.

As a leading infrared dust sensor manufacturer in China, Pulse delivers advanced sensing solutions that combine precision, durability, and ease of integration. Our sensors empower smart devices and air quality management systems, ensuring cleaner, healthier indoor environments for homes, offices, and industrial applications.

By investing in high-precision infrared dust sensors, manufacturers and end-users can achieve reliable, efficient, and future-ready solutions for monitoring and improving indoor air quality.
